Axel Joost Digital wiring harness version C-BS for switch and key operation

Axel Joost electronic box Digital wiring harness version C-BS for switch - and button operation.

Digital wiring harness version C-BS for switch - and button operation

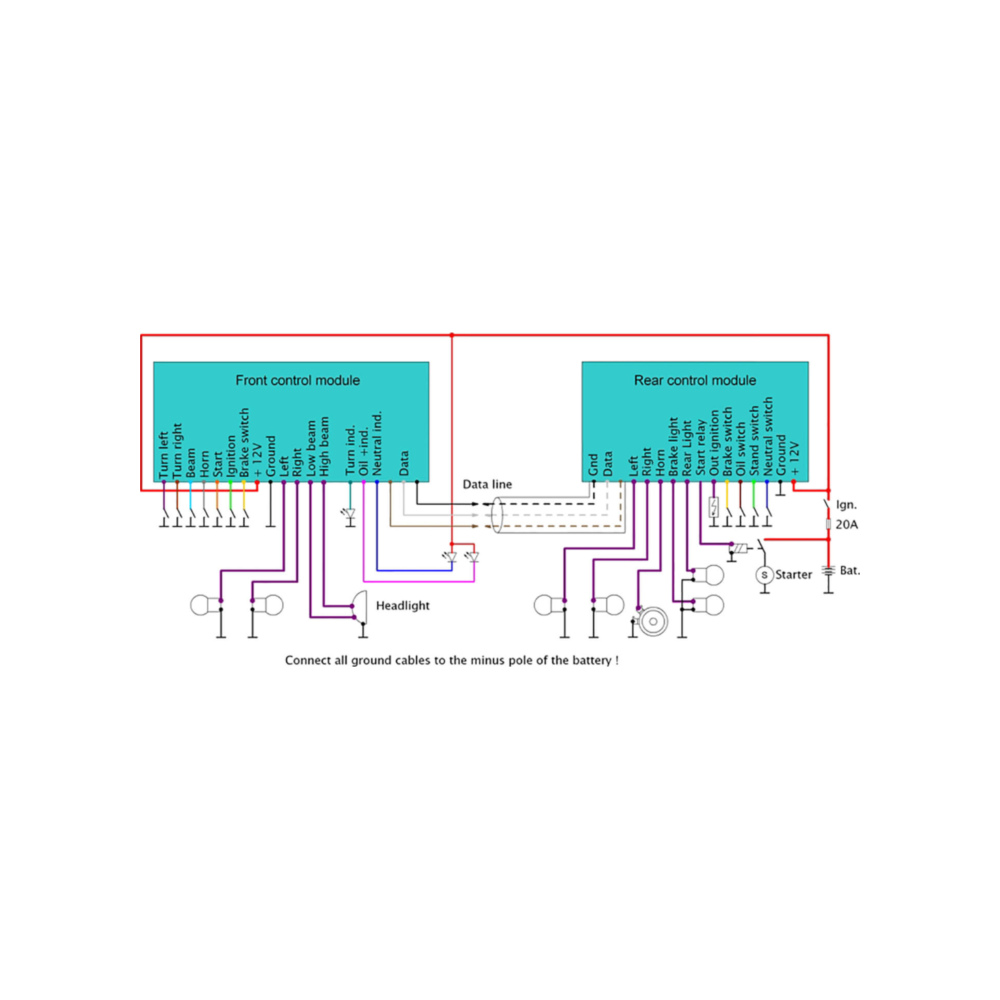

The available electronics boxes on the market reduce the number of routed cables on the bike. This makes the installation easier. Nevertheless, it is amazing how much cable is still present on the bike. The universal digital harness version C-BS (BS stands for button and switch control) goes a revolutionary new way: A small control box on the handlebar and a small control box on the rear part of the bike take over the complete control of the bike and -communicate- via a thin serial line. The various switches and buttons, as well as the load cables from the consumers are wired to the respective closer box. This saves various meters of cable, the load lines to the consumers are shorter and the installation time is drastically reduced in the case of a new installation.

Dimensions: Handlebar box: 50mm length x 12mm width x 42mm height
Frame box: 50mm x 42mm x 12mm
Current consumption: maximum 7mA at 12V
Housing: black impact-resistant ABS plastic, waterproof encapsulated
Input voltage: 7 - 18 volts
Connections: Control inputs 0.1mm², power outputs 1 mm², 20 cm each
Maximum output current: 10 amps for start relay/lift solenoid, 5 amps for high/low beam, 3 amps for the other outputs
Maximum ambient temperature: 80 degrees Celsius
Allowable current from 12V connection: 20 amps

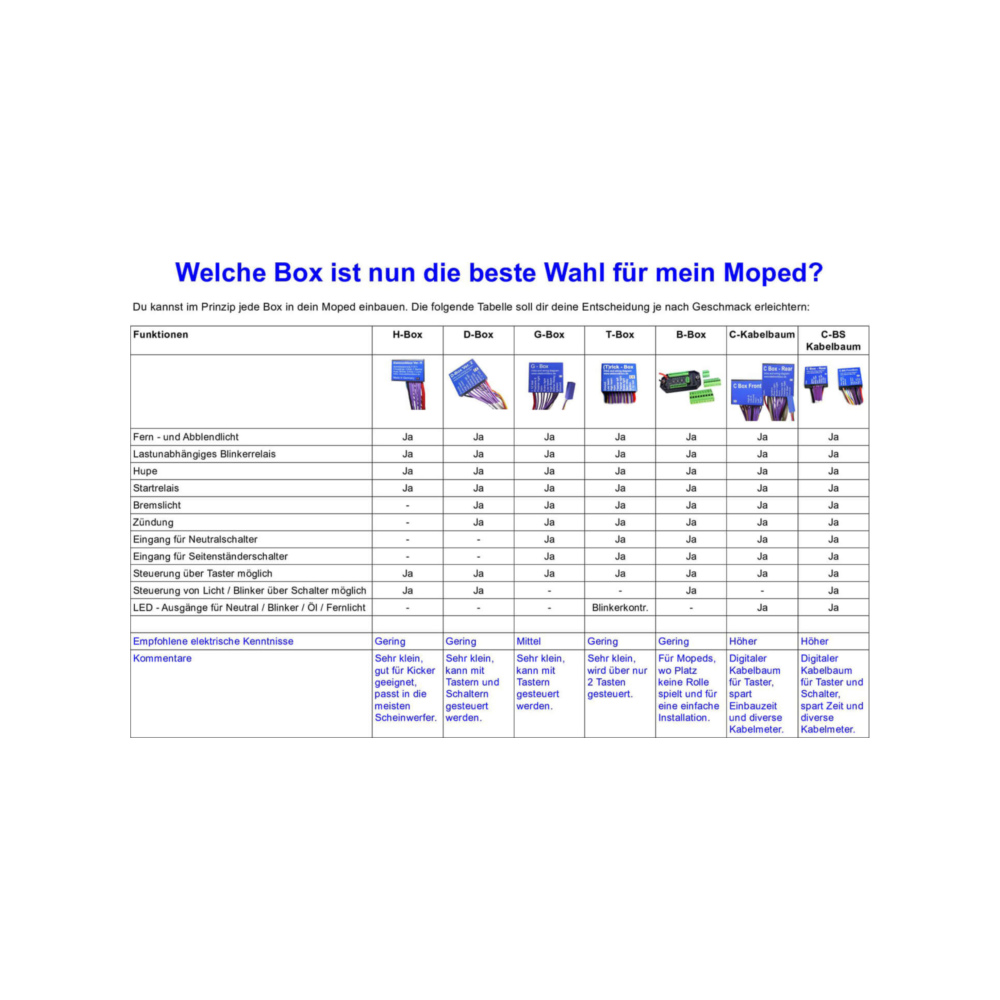

Not sure if this is the right control box for you? Then follow the link:
https://www.youtube.com/watch?v=rivetDWvNRro

Technical data

Artikel:PW-361-990
EAN:4054783423705
Manufacturer:Axel Joost
Execution:Blinker
Category:Kabelbäume
Depth:50.00 mm
